DFN0603封裝系列ESD保護(hù)器

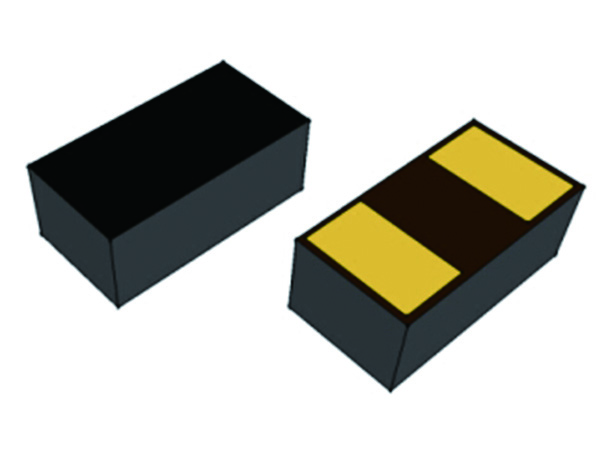

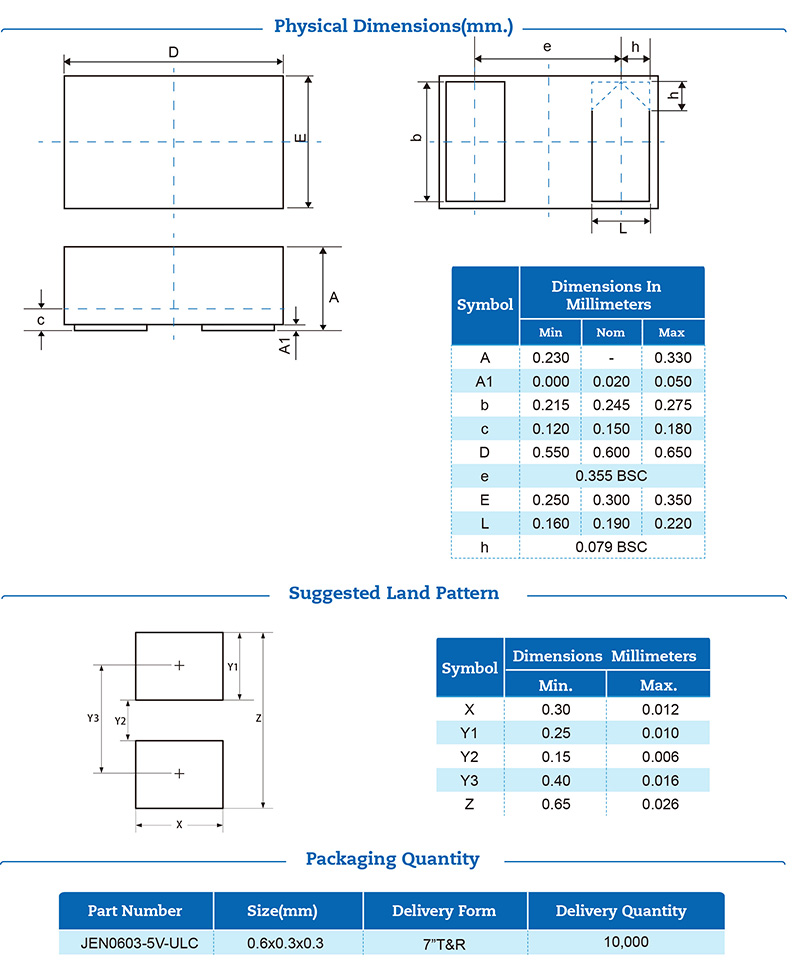

封裝：DFN-0603
- 品牌： 集電通/JTDFUSE
- 分類(lèi)： ESD保護(hù)器
- 最大電壓： --
- 額定電流： --
| Part No. | VRWM .max (V) | VBR .min (V) | CJ .typ (pF) | Ppp @8/20μs (W) | Ipp @8/20μs (A) | IR .max (μA) | Contact (kV) | Channel | Inner Diagram | Package | |
| JEN0603-3.3V-C | 3.3 | 3.8 | 25 | 80 | 8 | 0.2 | ±30 | 1 |  | DFN0603 |  |
| JEN0603-5V-C | 5 | 5.6 | 15 | 70 | 7 | 0.1 | ±25 | 1 | | DFN0603 | |
| JEN0603-5V-LC | 5 | 6 | 2.5 | - | - | 0.2 | ±8 | 1 | | DFN0603 | |
| JEN0603-5V-ULC | 5 | 6.5 | 0.3 | 100 | 4 | 0.2 | ±22 | 1 | | DFN0603 | |
VRWM：Reverse Working Voltage
VBR：Snap-Back Voltage
CJ：Junction Capacitance
Ppp：Peak Pulse Power
Ipp：Peak Pulse Current
IR：Reverse Leakage Current
Contact：IEC 61000-4-2;Contact Discharge
