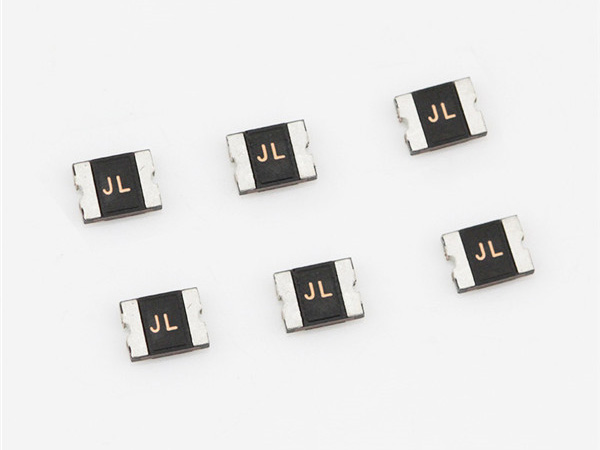

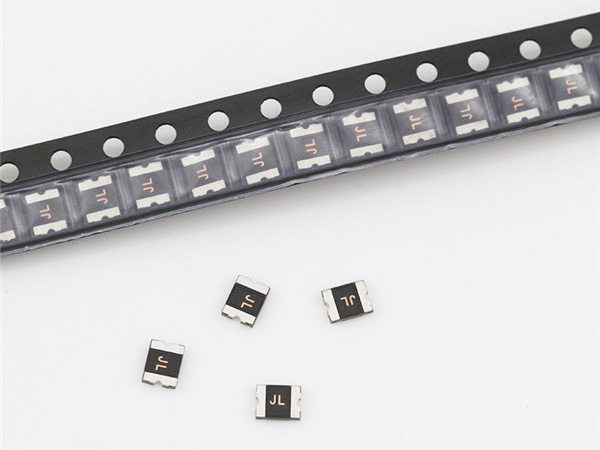

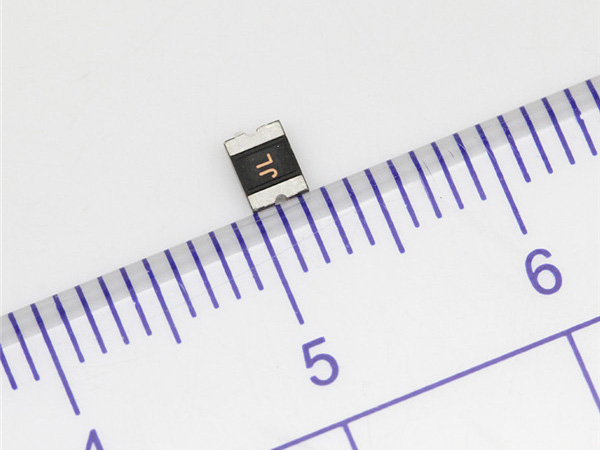

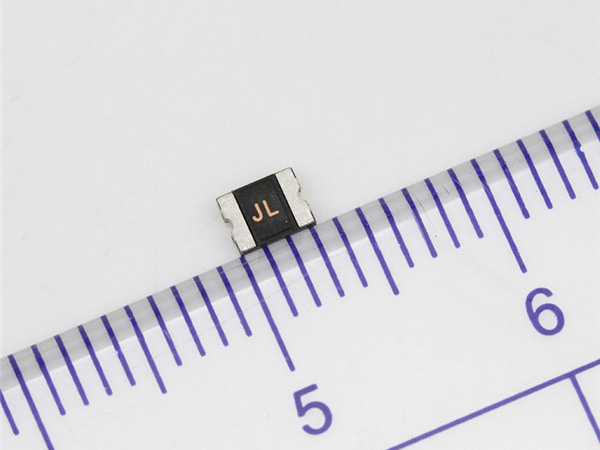

1210SL系列低內阻自恢復保險絲
ASMD1210SL系列提供表面貼裝可復位過流保護，保持電流范圍為1.5A至7.5A。 該系列廣泛應用于空間有限的現代電子產品。
- 品牌： 集電通/JDTFUSE
- 分類： 貼片自恢復保險絲
- 最大電壓： 6V-12V
- 額定電流： 1.5~7.5A
ASMD1210規格書
電氣特性（25°C）
Model | Vmax (Vdc) | Imax (A) | Ihold @25℃ (A) | Itrip @25℃ (A) | Pd typ. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rimin (Ω) | R1max (Ω) | ||||||
ASMD1210SL150 | 6 | 50 | 1.5 | 3.0 | 0.8 | 8.0 | 2.0 | 0.010 | 0.060 |
ASMD1210SL150-12V | 12 | 50 | 1.5 | 3.0 | 0.8 | 8.0 | 2.0 | 0.010 | 0.060 |
ASMD1210SL175 | 6 | 50 | 1.75 | 3.5 | 0.8 | 8.0 | 2.0 | 0.005 | 0.040 |
ASMD1210SL175-12V | 12 | 50 | 1.75 | 3.5 | 0.8 | 8.0 | 2.0 | 0.005 | 0.040 |
ASMD1210SL190 | 6 | 50 | 1.9 | 3.8 | 0.8 | 8.0 | 3.0 | 0.006 | 0.037 |
ASMD1210SL190-12V | 12 | 50 | 1.9 | 3.8 | 0.8 | 8.0 | 3.0 | 0.006 | 0.037 |
ASMD1210SL200 | 6 | 50 | 2.0 | 4.0 | 0.8 | 8.0 | 3.0 | 0.006 | 0.035 |
ASMD1210SL200-12V | 12 | 50 | 2.0 | 4.0 | 0.8 | 8.0 | 3.0 | 0.006 | 0.035 |
ASMD1210SL260 | 6 | 50 | 2.6 | 5.2 | 0.8 | 13.0 | 2.0 | 0.003 | 0.025 |
ASMD1210SL260-12V | 12 | 50 | 2.6 | 5.2 | 0.8 | 13.0 | 2.0 | 0.003 | 0.025 |
ASMD1210SL300 | 6 | 50 | 3.0 | 6.0 | 0.8 | 15.0 | 2.0 | 0.003 | 0.020 |
ASMD1210SL300-12V | 12 | 50 | 3.0 | 6.0 | 0.8 | 15.0 | 2.0 | 0.003 | 0.020 |
ASMD1210SL350 | 6 | 50 | 3.5 | 7.0 | 0.8 | 17.5 | 2.0 | 0.002 | 0.018 |
ASMD1210SL350-12V | 12 | 50 | 3.5 | 7.0 | 0.8 | 17.5 | 2.0 | 0.002 | 0.018 |
ASMD1210SL380 | 6 | 50 | 3.8 | 7.6 | 0.8 | 19.0 | 2.0 | 0.002 | 0.016 |
ASMD1210SL380-12V | 12 | 50 | 3.8 | 7.6 | 0.8 | 19.0 | 2.0 | 0.002 | 0.016 |
ASMD1210SL400 | 6 | 50 | 4.0 | 8.0 | 0.8 | 20.0 | 2.0 | 0.002 | 0.014 |
ASMD1210SL400-12V | 12 | 50 | 4.0 | 8.0 | 0.8 | 20.0 | 2.0 | 0.002 | 0.014 |
ASMD1210SL450 | 6 | 50 | 4.5 | 9.0 | 1.0 | 22.5 | 2.0 | 0.001 | 0.013 |
ASMD1210SL450-12V | 12 | 50 | 4.5 | 9.0 | 1.0 | 22.5 | 2.0 | 0.001 | 0.013 |
ASMD1210SL500 | 6 | 50 | 5.0 | 10 | 1.0 | 25.0 | 2.0 | 0.001 | 0.012 |
ASMD1210SL500-12V | 12 | 50 | 5.0 | 10 | 1.0 | 25.0 | 2.0 | 0.001 | 0.012 |
ASMD1210SL550 | 6 | 50 | 5.5 | 11 | 1.0 | 27.5 | 2.0 | 0.001 | 0.011 |
ASMD1210SL550-12V | 12 | 50 | 5.5 | 11 | 1.0 | 27.5 | 2.0 | 0.001 | 0.011 |
ASMD1210SL600 | 6 | 50 | 6.0 | 12 | 1.2 | 30.0 | 2.0 | 0.001 | 0.010 |
ASMD1210SL600-12V | 12 | 50 | 6.0 | 12 | 1.2 | 30.0 | 2.0 | 0.001 | 0.010 |
ASMD1210SL650 | 6 | 50 | 6.5 | 13 | 1.2 | 32.5 | 2.0 | 0.001 | 0.009 |
ASMD1210SL650-12V | 12 | 50 | 6.5 | 13 | 1.2 | 32.5 | 2.0 | 0.001 | 0.009 |
ASMD1210SL700 | 6 | 50 | 7.0 | 14 | 1.2 | 35.0 | 2.0 | 0.001 | 0.008 |
ASMD1210SL700-12V | 12 | 50 | 7.0 | 14 | 1.2 | 35.0 | 2.0 | 0.001 | 0.008 |
ASMD1210SL750 | 6 | 50 | 7.5 | 15 | 1.2 | 37.5 | 2.0 | 0.001 | 0.007 |
ASMD1210SL750-12V | 12 | 50 | 7.5 | 15 | 1.2 | 37.5 | 2.0 | 0.001 | 0.007 |
V max = 元件在額定電流下能承受的最大電壓.
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環境中,最小動作電流 （ 推薦閱讀：1210系列貼片保險絲）
Pd =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.
注意 : 超出指定額定值的操作，可能會導致?lián)p傷和可能產生電弧和火焰.

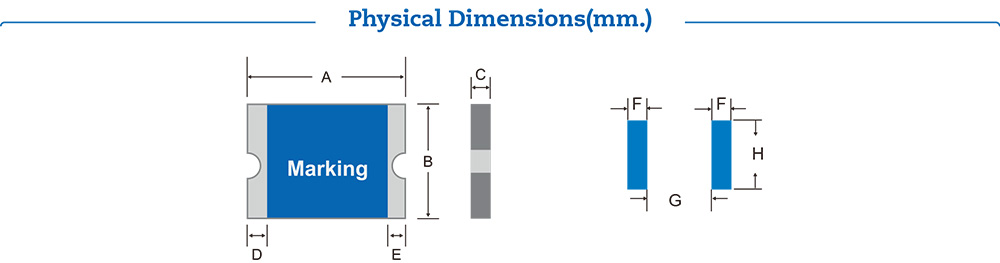

Model | A | B | C | D | E | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | |
| ASMD1210SL150 | 3.0 | 3.43 | 2.35 | 2.8 | 0.3 | 0.7 | 0.25 | 0.1 |
| ASMD1210SL175 | 3.0 | 3.43 | 2.35 | 2.8 | 0.3 | 0.7 | 0.25 | 0.1 |
| ASMD1210SL190 | 3.0 | 3.43 | 2.35 | 2.8 | 0.3 | 0.7 | 0.25 | 0.1 |
| ASMD1210SL200 | 3.0 | 3.43 | 2.35 | 2.8 | 0.3 | 0.7 | 0.25 | 0.1 |
| ASMD1210SL260 | 3.0 | 3.43 | 2.35 | 2.8 | 0.4 | 1.0 | 0.25 | 0.1 |
| ASMD1210SL300 | 3.0 | 3.43 | 2.35 | 2.8 | 0.4 | 1.0 | 0.25 | 0.1 |
| ASMD1210SL350 | 3.0 | 3.43 | 2.35 | 2.8 | 0.4 | 1.2 | 0.25 | 0.1 |
| ASMD1210SL380 | 3.0 | 3.43 | 2.35 | 2.8 | 0.4 | 1.2 | 0.25 | 0.1 |
| ASMD1210SL400 | 3.0 | 3.43 | 2.35 | 2.8 | 0.5 | 1.2 | 0.25 | 0.1 |
| ASMD1210SL450 | 3.0 | 3.43 | 2.35 | 2.8 | 0.5 | 1.4 | 0.25 | 0.1 |
| ASMD1210SL500 | 3.0 | 3.43 | 2.35 | 2.8 | 0.5 | 1.4 | 0.25 | 0.1 |
| ASMD1210SL550 | 3.0 | 3.43 | 2.35 | 2.8 | 0.5 | 1.4 | 0.25 | 0.1 |
| ASMD1210SL600 | 3.0 | 3.43 | 2.35 | 2.8 | 0.5 | 1.6 | 0.25 | 0.1 |
| ASMD1210SL650 | 3.0 | 3.43 | 2.35 | 2.8 | 0.5 | 1.6 | 0.25 | 0.1 |
| ASMD1210SL700 | 3.0 | 3.43 | 2.35 | 2.8 | 0.5 | 1.6 | 0.25 | 0.1 |
| ASMD1210SL750 | 3.0 | 3.43 | 2.35 | 2.8 | 0.5 | 1.6 | 0.25 | 0.1 |
