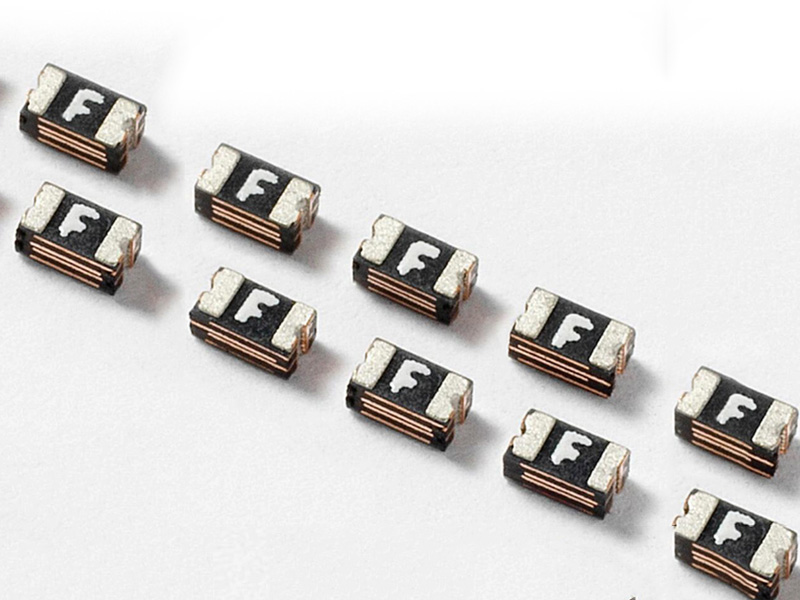

The 0603L Series PTC provides surface mount
overcurrent protection for applications where space is at a premium and resettable protection is desired.
Part Number | Marking | Ihold (A) | Itrip (A) | Vmax (Vdc) | Imax (A) | Pdtyp. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rmin (Ω) | R1max (Ω) | |||||||
0603L004 | - | 0.04 | 0.12 | 24 | 20 | 0.5 | 0.20 | 1.00 | 4.00 | 40.00 |
0603L010 | C | 0.10 | 0.30 | 15 | 40 | 0.5 | 0.50 | 1.00 | 0.900 | 6.000 |
0603L020 | H | 0.20 | 0.50 | 9 | 40 | 0.5 | 1.00 | 0.60 | 0.550 | 3.500 |
0603L025 | I | 0.25 | 0.55 | 9 | 40 | 0.5 | 8.00 | 0.08 | 0.500 | 3.000 |
0603L035 | F | 0.35 | 0.75 | 6 | 40 | 0.5 | 8.00 | 0.10 | 0.200 | 1.000 |
0603L050 | J | 0.50 | 1.00 | 6 | 40 | 0.5 | 8.00 | 0.10 | 0.100 | 0.680 |
Part Number | A | B | C | D | E | |||||||||||||||
Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | |||||||||||
Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
0603L001/60 | .055 | .071 | 1.40 | 1.80 | .024 | .039 | 0.60 | 1.00 | .016 | .039 | 0.40 | 1.00 | .006 | .020 | 0.15 | 0.50 | - | .016 | - | 0.40 |
0603L002/60 | .055 | .071 | 1.40 | 1.80 | .024 | .039 | 0.60 | 1.00 | .016 | .039 | 0.40 | 1.00 | .006 | .020 | 0.15 | 0.50 | - | .016 | - | 0.40 |
0603L003/36 | .055 | .071 | 1.40 | 1.80 | .024 | .039 | 0.60 | 1.00 | .016 | .039 | 0.40 | 1.00 | .006 | .020 | 0.15 | 0.50 | - | .016 | - | 0.40 |
0603L004 | .055 | .071 | 1.40 | 1.80 | .024 | .039 | 0.60 | 1.00 | .016 | .030 | 0.40 | 0.75 | .006 | .020 | 0.15 | 0.50 | .004 | .016 | 0.10 | 0.40 |
0603L010 | .055 | .071 | 1.40 | 1.80 | .024 | .039 | 0.60 | 1.00 | .016 | .030 | 0.40 | 0.75 | .006 | .020 | 0.15 | 0.50 | .004 | .016 | 0.10 | 0.40 |
0603L020 | .055 | .071 | 1.40 | 1.80 | .024 | .039 | 0.60 | 1.00 | .016 | .030 | 0.40 | 0.75 | .006 | .020 | 0.15 | 0.50 | .004 | .016 | 0.10 | 0.40 |
0603L025 | .055 | .071 | 1.40 | 1.80 | .024 | .039 | 0.60 | 1.00 | .016 | .030 | 0.40 | 0.75 | .006 | .020 | 0.15 | 0.50 | .004 | .016 | 0.10 | 0.40 |
0603L035 | .055 | .071 | 1.40 | 1.80 | .024 | .039 | 0.60 | 1.00 | .030 | .061 | 0.75 | 1.55 | .006 | .020 | 0.15 | 0.50 | .004 | .016 | 0.10 | 0.40 |
0603L050 | .055 | .071 | 1.40 | 1.80 | .024 | .039 | 0.60 | 1.00 | .030 | .061 | 0.75 | 1.55 | .006 | .020 | 0.15 | 0.50 | .004 | .016 | 0.10 | 0.40 |
